Objective And Description:
The objective of this is to implement thresholding on images to
convert them to binary, perform different transformation operations on images.
Transformation operations help enhance the quality of the image by applying operations like log, inverse log and power on the entire image. Different type of transformation yields different results.
Gray level transformation:
There are three basic gray level
transformation.
I.
Linear
II.
Logarithmic
III.

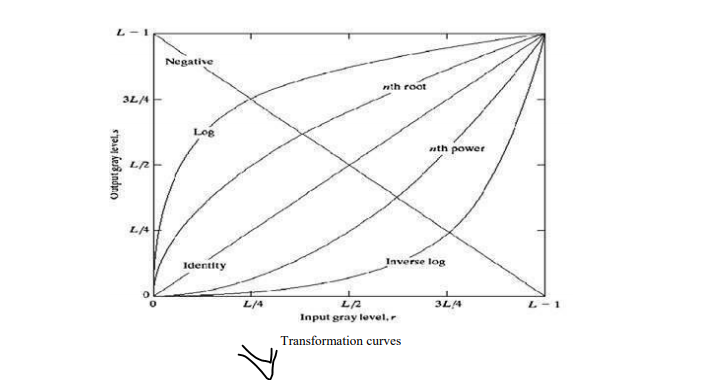

Power – law the overall graph of these
transitions has been shown below.
Power law transformations:
It includes
nth power and nth root transformation. These transformations can be given by
the expression: Digital Image Processing Lab Manual 1 s=cr^γ .This symbol γ is
called gamma, due to which this transformation is also known as gamma
transformation. Variation in the value of γ varies the enhancement of the
images. Different display devices / monitors have their own gamma correction,
that’s why they display their image at different intensity. This type of
transformation is used for enhancing images for different type of display
devices. The gamma of different display devices is different. For example Gamma
of CRT lies in between of 1.8 to 2.5, that means the image displayed on CRT is
dark.
Correcting gamma:
s=cr^γ s=cr^(1/2.5) The same image but with
different gamma values has been shown here.
Log transformations:
The log transformations
can be defined by this formula s = c log(r + 1). Where s and r are the pixel
values of the output and the input image and c is a constant. The value 1 is
added to each of the pixel value of the input image because if there is a pixel
intensity of 0 in the image, then log (0) is equal to infinity. So 1 is added,
to make the minimum value at least 1. During log transformation, the dark
pixels in an image are expanded as compare to the higher pixel values. The
higher pixel values are kind of compressed in log transformation.
Negative Transformation:
The second
linear transformation is negative transformation, which is invert of identity
transformation. In negative transformation, each value of the input image is
subtracted from the L-1 and mapped onto the output image. This transformation
is done by this formula s = (L – 1) – r So each value is subtracted by 255,so
the lighter pixels become dark and the darker picture becomes light. And it
results in image negative. \ Negative transformation Thresholding is the
operation through which an image can be converted into a binary image/black
& white i.e. having only two distinct levels. Threshold value can be the
mean or median etc. of the image. Gray level Slicing is used to highlight a
specific range of gray levels in an image Some Useful Commands:
1. To
calculate the mean of 2D array using NumPy: my_mean = numpy.mean (my_array)
2. To
calculate min (or max) of an array: my_min = numpy.amin(my_array)
3. To
calculate the power of an array using NumPy: array_power = numpy.power
(my_array, power)
4. To obtain
percentile value. percentile_array = numpy.percentile(my_array, percentile)
5. To change
data type of array. my_array = my_array.astype(numpy.uint16
There Are
Some Practice Task For Implementing These Topics So let’s start:
1: Apply following transformation techniques on image
provided and observe the output image of each transformation. I. Negative
transformation II. Log transformation
(a)
Code:
import cv2 as cv
import numpy as np
img = cv.imread('einstein.tif',0)
rows= img.shape[0]
colums = img.shape[1]
print(rows,colums)
negative_image = 255 - img
cv.imshow('My Negative Image' , negative_image)
cv.waitKey(0)
Output:
(b)
Code:
import cv2 as cv
import numpy as np
image = cv.imread('einstein.tif',0)
rows= image.shape[0]
colums = image.shape[1]
print(rows,colums)
m=np.max(image)
print(m)
x = 255/(np.log(1+m))
print(x)
Log_Transformation = x*(np.log(image+1))
Log_Transformation1 = np.array(Log_Transformation,np.uint8)
cv.imshow('Orignal Image ',image)
cv.imshow('MY Log Transformed Image', Log_Transformation1)
#
show log transformed image
cv.waitKey(6000)
Output:
2: Apply the following transformation on an image.
(a)
Code:
import cv2 as cv
import numpy as np
image = cv.imread('einstein.tif',0)
dim = image.shape
rows= image.shape[0]
colums = image.shape[1]
print(rows,colums)
mi=np.min(image)
ma = np.max(image)
print('Min : ',min,'Max: ', max)
m = np.mean(image)
print('Mean : ',m)
image_1 = np.zeros(dim,dtype=np.uint8)
for row in range(rows):
for col in range(colums):
if image[row][col]
< m:
image_1[row][col] = 255
else:
image_1[row][col] = 0
cv.imshow('1ST CONDITION', image_1)
cv.waitKey(0)
Output:
(b)
Code:
import cv2
import numpy
img = cv2.imread('einstein.tif',0)
shap = img.shape
r = shap[0]
c = shap[1]
meen = numpy.mean(img)
my_Image2 = numpy.zeros(shap,dtype=numpy.uint8)
for rows in range(r):
for cols in range(c):
if img[rows][cols]
< meen:
my_Image2[rows][cols] = 255
else:
my_Image2[rows][cols] = 0
cv2.imshow('My Second Condition', my_Image2)
cv2.waitKey(0)
Output:
(c)
Code:
import cv2 as cv
import numpy as np
image = cv.imread('einstein.tif',0) #read original image
dim = image.shape #image
dimensions
rows= image.shape[0] #number of
rows
colums = image.shape[1] #number of
columnss
print(rows,colums) #show rows
and columns
mi=np.min(image) #minimum
pixel
ma = np.max(image) #maximum
pixel
print('Min : ',mi,'Max: ', ma) #show min and max pixel
m = np.mean(image) #calculate
mean
print('Mean : ',m) #print
mean
Low_Limit = m-20
High_Limit = m+20
print("Limits : ",Low_Limit,"
to ",High_Limit)
#show limits
image_1 = np.zeros(dim,dtype=np.uint8) #new blank image
for row in range(rows):
for col in range(colums):
if image[row][col]
<= High_Limit and image[row][col] >= Low_Limit:
image_1[row][col] = 0
else:
image_1[row][col] = 255
cv.imshow('My Third Condition', image_1) #show transformed image
cv.waitKey(0)
Output:

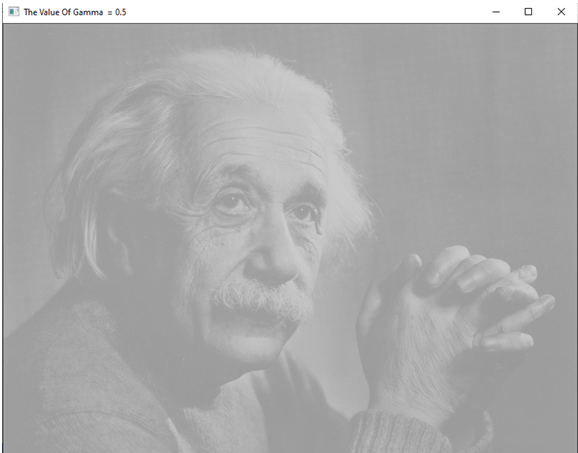

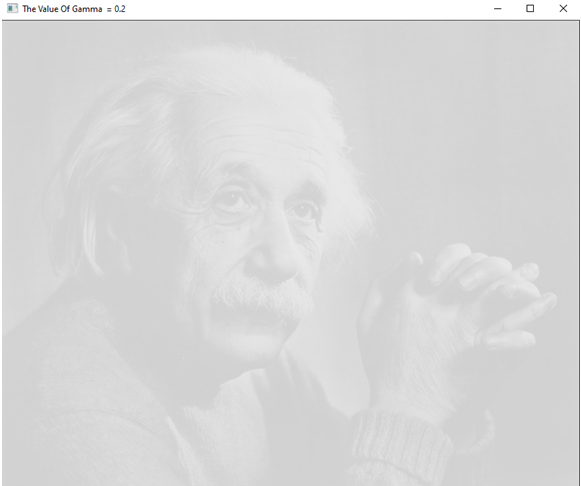

3: Apply Power Law transformation for the following values of γ (0.2, 0.5, 1.2 and 1.8) . Make sure to adjust data types accordingly.
Code:
import cv2 as cv
import numpy as np
image = cv.imread('einstein.tif',0)
dim = image.shape
rows= image.shape[0]
colums = image.shape[1]
print(rows,colums)
x = image/255
y = np.power(x,0.2) #gamma =
0.2
z = 255*y
z1 = np.array(z,dtype= np.uint8)
cv.imshow('The Value Of Gamma
= 0.2',z1)
x2 = np.power(x,0.5) #gamma =
0.5
z2 = 255*x2
z2 = np.array(z2,dtype= np.uint8)
cv.imshow('The Value Of Gamma
= 0.5',z2)
x3 = np.power(x,1.2) #gamma =
1.2
z3 = 255*x3
z3 = np.array(z3,dtype= np.uint8)
cv.imshow('The Value Of Gamma
= 1.2',z3)
x4 = np.power(x,1.8) #gamma =
1.8
z4 = 255*x4
z4 = np.array(z4,dtype= np.uint8)
cv.imshow('The Value Of Gamma = 1.8',z4)
cv.waitKey(0)
Output:
4:Apply Gray level slicing using lower limit 100 and upper
limit 200. Set all these values to 210.
Code:
#Noor Khan
Lab No 04
import cv2 as cv
import numpy as np
image = cv.imread('einstein.tif',0)
dim = image.shape
rows= image.shape[0]
colums = image.shape[1]
print(rows,colums)
image_1 = np.zeros(dim,dtype=np.uint8)
#slicing
for row in range(rows):
for col in range(colums):
if image[row][col]
<= 200 and image[row][col] >= 100:
image_1[row][col] = 210
#show
sliced image
cv.imshow('New Sliced Image', image_1)
cv.waitKey(0)
Output:
What is Bit plane slicing:
