Introduction To Pointers And Dynamic Memory | Data Structure

Objective:

To practice pointers and dynamic memory applications

Description:

A pointer is a variable whose value is the address of another variable. Like any variable or constant, you must declare a pointer before you can work with it.type *var-name; There are few important operations performed when using pointers are

1.      Define a pointer variable.

2.      Assign the address of a variable to a pointer.

3.      Access the value at the address available in the pointer variable.

Defining a Pointer Variable	Pointer Variables Assignment:	To access num using iptr and indirection operator *
int *iptr; // iptr can hold the address of an int	int num=25; iptr = &num;	cout << iptr; // prints 0x4a00 cout <<  *iptr; // prints 25



Value of memory location towards which pointer is pointing can be changed using pointers *ptr_nam=val;For example *iptr=8;

It is always a good practice to assign the pointer NULL to a pointer variable in case you do not have exact address to be assigned.

Example

void main () { int *ptr=NULL; if (ptr) {// succeeds if p is not null} if (!ptr) {// succeeds if p is null} }

If all unused pointers are given the null value you can avoid the accidental misuse of an uninitialized pointer. Many times, uninitialized variables hold some junk values and it becomes difficult to debug the program.

Pointer Rules Summary

1.      A pointer stores a reference to its pointee. The pointee, in turn, stores something useful.

2.      The dereference operation on a pointer accesses its pointee. A pointer may only be dereferenced after it has been assigned to refer to a pointee. Most pointer bugs involve violating this one rule.

3.      Allocating a pointer does not automatically assign it to refer to a pointee. Assigning the pointer to refer to a specific pointee is a separate operation which is easy to forget.

4.      Assignment between two pointers makes them refer to the same pointee which introduces sharing.

Static Memory Allocation:

In the static memory allocation, the amount of memory to be allocated is predicted and pre known Memory is allocated during the compilation itself. All the declared variables declared normally, are allocated memory statically.

Example
void main { int a=9; cout<<sqr(a); }	nt sqr(int val) { return val*val; }

Dynamic Memory Allocation:

Variables declared and used locally inside a function definition are destroyed, when declared variables within a function scope are needed to be used by other functions without creating an overhead by copying these variables via function's return value.

1.      Allocate memory when required

2.      Use it by initializing to some value

3.      Deallocate the memory when no more required

Memory Allocation	Memory Initialization	Memory deallocation
ptrtype* ptrname; pvalue = new ptrtype; void main { int*p; p=new int; }	*ptrname=value; void main { int*p; p=new int; *p=9; }	delete ptrname; void main { int*p; p=new int; *p=9; delete p; }

Dangling Pointers:

The delete operator does not delete the pointer it takes the memory being pointed to and returns it to the heap. It does not even change the contents of the pointer. Since the memory being pointed to is no longer available (and may even be given to another application), such a pointer is said to be dangling.

Memory Leaks and Bad pointers

Memory leaks when it is allocated using the new operator but not returned to the heap using the delete operator. When a pointer is dereferenced but not allocated any memory, such pointer is called bad pointer.

Some Of The Example Will Help Us To Understand This Topic:

1.      For each of the following, write a single statement that performs the specified task. Assume that floating-point variables number1 and number2 have been declared and that number1 has been initialized to 7.3.

a) Declare the variable fPtr to be a pointer to an object of type double and initialize the

pointer to nullptr.

b) Assign the address of variable number1 to pointer variable fPtr.

c) Display the value of the object pointed to by fPtr.

d) Assign the value of the object pointed to by fPtr to variable number2.

e) Display the value of number2.

f) Display the address of number1.

g) Display the address stored in fPtr. Is the address displayed the same as that of number1?



#include <iostream>   using namespace std;   int main() {     float number1=7.3;     float number2;     float *fPtr=NULL; .           fPtr=&number1         cout<<"Value of Variable number1 pointed to by fPtr : "<<*fPtr<<endl<<endl       number2=*fPtr:         cout<<"Value of Variable number2 pointed to by fPtr : "<<*fPtr<<endl<<endl;       cout<<"Address of Variable number1 : "<<&number1<<endl<<endl;         cout<<"Address stored in fPtr : "<<fPtr;           return 0; }

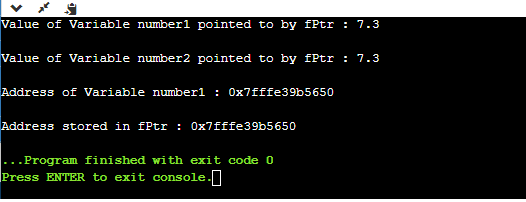

Output:



2.      Create a class IntStaticPointer containing a pointer to integer as attribute. Each instance of class should be capable of pointing towards integer variable. Provide

·         default constructor Initializes pointer to some initial value (NULL)

·         void setValue(int&val) Points the pointer to val

·         intgetValue() returns the contents of memory to which pointer is pointing

·         Destructor that initializes the pointer again with NULL

CODE

#include <iostream>   using namespace std;   class IntStaticPointer { private:       int* iptr;   public:       IntStaticPointer()     {         iptr = NULL;     }       void setValue(int& val)     {        iptr = &val;     }       int getValue()     {         return *iptr;     }     ~IntStaticPointer()     {         *iptr = NULL;     } };     int main() {     int a = 0;       cout << "Enter the integer value : ";     cin >> a;               IntStaticPointer obj1;     obj1.setValue(a);     cout <<"\n\nThe integer : "<< obj1.getValue();       return 0; }

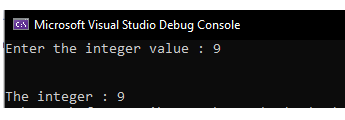

Output:



3.      Find errors and correct the following code fragments:

Code Fragment	Error Correction	Code Fragment	Error Correction
void main { int * ptr, *foo, h; intval=9; ptr=&val; foo=ptr; *foo=10; int z=*ptr; cout<<val<<“ “<<z; }	int * ptr, *foo, h; int val=9; ptr=&val; foo=ptr; *foo=10; int z=*ptr; cout<<val<<" "<<z;	void BadPointer() { int* p; *p = 42; }	void BadPointer() {     int* p;     int var = 10;       p = &var; }
void main { int *p; intval=9; p=val; cout<<p; }	int *p; int val=9; p=&val; cout<<p;	void main() { int*ptr; ptr=new int; cin>>*ptr; ptr=new int; cin>>*ptr; }	void main() {     int* ptr;     ptr = new int;     cin >> *ptr;     ptr = new int;     cin >> *ptr; }
void main{ int a = 5, b = 10; int *p1, *p2; p1 = &a; p2 = &b; *p1 = 10; p1 = p2; *p1 = 20; cout<<a<<“ “<<b; }	int a = 5, b = 10; int *p1, *p2; p1 = &a; p2 = &b; *p1 = 10; p1 = p2; *p1 = 20; cout<<a<<" "<<b;	void main() { int*ptr; ptr=new int; cin>>*ptr; ptr=NULL; delete ptr; cout<<*ptr; }	void main() {     int* ptr;     ptr = NULL;     ptr = new int;     cin >> *ptr;     cout << *ptr;     delete ptr; }

Create a class IntDynamicPointer containing a pointer to integer as attribute. Each instance of class should be capable of pointing towards integer variable.

Provide;

·         default constructor Initializes pointer to some initial value (NULL)

·         voidAllocMem() allocate memory to the pointer using dynamic memory

·         void setValue(intval) Points the pointer to val

·         intgetValue() returns the contents of memory to which pointer is pointing

·         Destructor that deletes the memory and initializes the pointer again with NULL

CODE

#include <iostream>   using namespace std;   class IntDynamicPointer { private:       int* iptr;   public:       IntDynamicPointer()     {         iptr = NULL;     }       void AllocMem()     {         iptr = new int;         cout << "The Address allocated dynamically : " << iptr << endl << endl;;     }       void setValue(int val)     {        *iptr = val;     }       int getValue()     {         return *iptr;     }     ~IntDynamicPointer()     {         delete iptr;         *iptr = NULL;     } };       int main() {               IntDynamicPointer obj1;     obj1.AllocMem();     obj1.setValue(10);     cout <<"The integer : "<< obj1.getValue()<<endl<<endl;       return 0; }

Find the error in each of the following program segments. Assume the following declarations and statements:

int *zPtr; // zPtr will reference built-in array z

void *sPtr = nullptr;

int number;

int z[ 5 ] = { 1, 2, 3, 4, 5 };

1.      ++zPtr;

2.      // use pointer to get first value of a built-in array

number = zPtr;



number = *zPtr;



3.      // assign built-in array element 2 (the value 3) to number

number = *zPtr[ 2 ];



number = *zPtr[ 2 ];



4.      // display entire built-in array z

for ( size_t i = 0; i <= 5; ++i )

cout << zPtr[ i ] << endl;



for ( size_t i = 0; i < 5; ++i )

{

cout << zPtr[ i ] << endl;

}



5.      // assign the value pointed to by sPtr to number

number = *sPtr;



number=(int)sPtr;



6.      ++z;

++zPtr;











7.      Introduce int variables x and y and int* pointer variables p and q.  Set x to 2, y to 8, p to the address of x, and q to the address of y.  Then print the following information:

Sr.	Commands	Output
1	The address of x and the value of x.	Address of x :004FF860 value of x :2
2	The value of p and the value of *p.	Value of p :004FF860 Value of *p :2
3	The address of y and the value of y.	Address of y : 004FF854 value of  y :8
4	The value of q and the value of *q.	Value of q :004FF854 Value of *q :8
5	The address of p (not its contents!).	Address of p :00B5F8D8
6	The address of q (not its contents!).	Address of q :00B5F8CC

Use the Hex function to print all pointer/address values and format the output so it is easy to make comparisons.

int main() {               int x = 2;     int y = 8;       int* p, * q;     p = &x;     q = &y;       cout << " Address of x :"<< p << endl;     cout << " value of x :" << x << endl;     cout << " Value of p :" << p << endl;     cout << " Value of *p :" << *p << endl;     cout << "Address of y : "<< q<<endl;     cout << " value of y :" << y << endl;     cout << " Value of q :" << q << endl;     cout << " Value of *q :" << *q << endl;     cout << " Address of p :" << &p << endl;     cout << " Address of q :" << &q << endl;     return 0; }





8.      Providing that the declarations

int intArray[]={1,2,3}, *p=intArray;

What will be content of intArray and p after executing

a.       *p++;

b.      (*p)++;

c.       *p++ ;

d.      (*p)++;

int main() {     int intArray[] = { 1,2,3 };                 int * p = intArray;       cout << "Content of *p++ : " << *p++<<endl <<endl;     cout << "Content of (*p)++ : " << (*p)++ << endl << endl;     cout << "Content of *p++ : " << *p++ << endl << endl;     cout << "Content of (*p)++ : " << (*p)++ << endl << endl;       return 0;             }

Output:
