Objective:
The objective of this topic is to develop an understanding of local binary patterns.
Theory:
Local Binary Patterns operator is an image operator which transforms an image into an array or image of integer labels describing small scale appearance of the image.
For LBP, the pixel under observation acts as the threshold for its neighboring pixels. There are lots of different types of texture descriptors are used to extract features of an image. Local Binary Pattern, also known as LBP, is a simple and grey-scale invariant texture descriptor measure for classification. In LBP, a binary code is generated at each pixel by thresholding it’s neighbor hood pixels to either 0 or 1 based on the value of the centers pixel.
Steps:
Following are steps to find Local Binary Pattern of an image.
i. Set a pixel value as center pixel.
ii. Collect its neighbor hood pixels (eg:3 x 3 matrix so; total number of neighbor hood pixel is 8)
iii. Threshold it’s neighbourhood pixel value to 1 if its value is greater than or equal to center pixel value otherwise threshold it to 0.
iv. After thresholding, collect all threshold values from neighbourhood either clockwise or anti-clockwise. The collection will give you an 8-digit binary code. Convert the binary code into decimal.
v. Replace the center pixel value with resulted decimal and do the same process for all pixel values present in image.
Here are the some task which will help us to understand this topic more widely.
1: Calculate the Local Binary Pattern of given image by following all the steps that are mentioned above.
Code:
import numpy as np
import cv2 as cv
#padding input
def padding(img, paddingsize):
padded = np.pad(img, (paddingsize,
paddingsize), "constant")
return padded
#Local Binary
Pattern function
def LBP(img, paddingsize):
dims = np.shape(img) #shape of input image
rows = dims[0] #rows of input image
cols = dims[1] #cols of input image
lastrow = rows -
paddingsize # last row
lastcol = cols -
paddingsize # last column
for i in range(paddingsize, lastrow):
for j in range(paddingsize, lastcol):
window[:] =
img[i-paddingsize:i+paddingsize+1,j-paddingsize :j+paddingsize+1] # window size 3*3
center = window[1][1] #find center value
window = np.array(window) # convert to array
# put a zero if value is less
than the centre value else put one
if window[0,0]<center:
a = 0
if window[0,0]>=center:
a = 1
if window[0,1]<center:
b = 0
if window[0,1]>=center:
b = 1
if window[0,2]<center:
c = 0
if window[0,2]>=center:
c = 1
if window[1,0]<center:
d = 0
if window[1,0]>=center:
d = 1
if window[1,2]<center:
e = 0
if window[1,2]>=center:
e = 1
if window[2,0]<center:
f = 0
if window[2,0]>=center:
f = 1
if window[2,1]<center:
g = 0
if window[2,1]>=center:
g = 1
if window[2,2]<center:
h = 0
if window[2,2]>=center:
h = 1
Arraynew = [a,b,c,d,e,f,g,h]
Arraynew = np.array(Arraynew)
weightedarray = [128, 64, 32, 16, 8, 4, 2, 1] #define a weighted array
weightedarray =
np.array(weightedarray)
out =
Arraynew*weightedarray
FinalCenter = np.sum(out)
Output[i,j] =
FinalCenter
return Output
#main program
img =
cv.imread(‘freestudystrom/Human.png' , 0) # read input image
paddingsize =
1
padded=padding(img,paddingsize)
#padd the
Output=np.zeros(shape=(np.shape(padded)), dtype='uint8') #definig the output image same as size of padded
Output =
LBP(padded, paddingsize) # call the function to find
output
cv.imshow('Local Binary Pattern', Output) # display output LBP image
cv.waitKey(0)
Output:
2: You are required to find LBP of each given image then calculate histogram of each output LBP image to get feature vector. Your feature vector size would be 1*256.
Code:
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
#padding input
def padding(img, paddingsize):
padded = np.pad(img, (paddingsize,
paddingsize), "constant")
return padded
#Local Binary
Pattern function
def LBP(img, paddingsize):
dims = np.shape(img) #shape of input image
rows = dims[0] #rows of input image
cols = dims[1] #cols of input image
lastrow = rows -
paddingsize # last row
lastcol = cols -
paddingsize # last column
for i in range(paddingsize, lastrow):
for j in range(paddingsize, lastcol):
window[:] =
img[i-paddingsize:i+paddingsize+1,j-paddingsize:j+paddingsize+1] # window size 3*3
center = window[1][1] #find center value
window = np.array(window) # convert to array
# put a zero if value is less
than the centre value else put one
if window[0,0]<center:
a = 0
if window[0,0]>=center:
a = 1
if window[0,1]<center:
b = 0
if window[0,1]>=center:
b = 1
if window[0,2]<center:
c = 0
if window[0,2]>=center:
c = 1
if window[1,0]<center:
d = 0
if window[1,0]>=center:
d = 1
if window[1,2]<center:
e = 0
if window[1,2]>=center:
e = 1
if window[2,0]<center:
f = 0
if window[2,0]>=center:
f = 1
if window[2,1]<center:
g = 0
if window[2,1]>=center:
g = 1
if window[2,2]<center:
h = 0
if window[2,2]>=center:
h = 1
Arraynew = [a,b,c,d,e,f,g,h]
Arraynew = np.array(Arraynew)
weightedarray = [128, 64, 32, 16, 8, 4, 2, 1] #define a weighted array
weightedarray =
np.array(weightedarray)
out = Arraynew*weightedarray
FinalCenter = np.sum(out)
Output[i,j] = FinalCenter
return Output
#main program
img = cv.imread('freestudystrom/chip.tif' , 0) # read input image
paddingsize =
1
padded=padding(img,paddingsize)
#padd the
Output=np.zeros(shape=(np.shape(padded)), dtype='uint8') #definig the output image same as size of padded
Output =
LBP(padded, paddingsize) # call the function to find
output
cv.imshow('Local Binary Pattern', Output) # display output LBP image
plt.hist(Output.ravel(),256,[0,256]) #plot the histogram ; feature vector 1*256
plt.title('Histogram')
plt.show()
cv.waitKey(0)
The code is run for all three
images
Output:
3: Construct feature vector of all images given in task 2. You feature vector should be 1*64.
Code:
import numpy as np
import cv2 as cv
from matplotlib import pyplot as plt
#padding input
def padding(img, paddingsize):
padded = np.pad(img, (paddingsize,
paddingsize), "constant")
return padded
#Local Binary
Pattern function
def LBP(img, paddingsize):
dims = np.shape(img) #shape of input image
rows = dims[0] #rows of input image
cols = dims[1] #cols of input image
lastrow = rows -
paddingsize # last row
lastcol = cols -
paddingsize # last column
for i in range(paddingsize, lastrow):
for j in range(paddingsize, lastcol):
window[:] = img[i-paddingsize:i+paddingsize+1,j-paddingsize:j+paddingsize+1] # window size 3*3
center = window[1][1] #find center value
window = np.array(window) # convert to array
# put a zero if value is less
than the centre value else put one
if window[0,0]<center:
a = 0
if window[0,0]>=center:
a = 1
if window[0,1]<center:
b = 0
if window[0,1]>=center:
b = 1
if window[0,2]<center:
c = 0
if window[0,2]>=center:
c = 1
if window[1,0]<center:
d = 0
if window[1,0]>=center:
d = 1
if window[1,2]<center:
e = 0
if window[1,2]>=center:
e = 1
if window[2,0]<center:
f = 0
if window[2,0]>=center:
f = 1
if window[2,1]<center:
g = 0
if window[2,1]>=center:
g = 1
if window[2,2]<center:
h = 0
if window[2,2]>=center:
h = 1
Arraynew = [a,b,c,d,e,f,g,h]
Arraynew = np.array(Arraynew)
weightedarray = [128, 64, 32, 16, 8, 4, 2, 1] #define a weighted array
weightedarray =
np.array(weightedarray)
out = Arraynew*weightedarray
FinalCenter = np.sum(out)
Output[i,j] = FinalCenter
return Output
#main program
img =
cv.imread(‘freestudystrom/chip.tif' , 0) # read input image
paddingsize =
1
padded=padding(img,paddingsize)
#padd the
Output=np.zeros(shape=(np.shape(padded)), dtype='uint8') #definig the output image same as size of padded
Output =
LBP(padded, paddingsize) # call the function to find
output
cv.imshow('Local Binary Pattern', Output) # display output LBP image
plt.hist(Output.ravel(),64,[0,256]) #plot the histogram ; feature vector 1*64
plt.title('Histogram')
plt.show()
cv.waitKey(0)
The code is run for all three
images
Output:

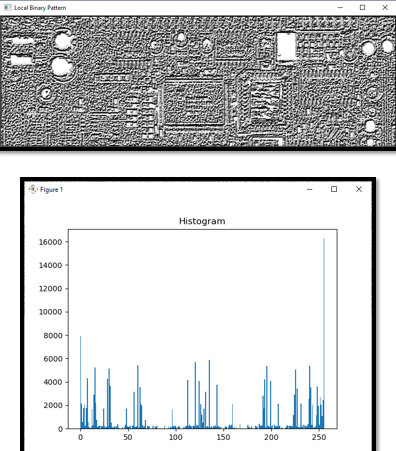

Chip Image

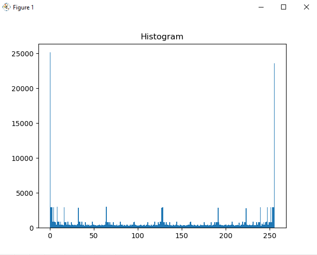

TV Noise Image

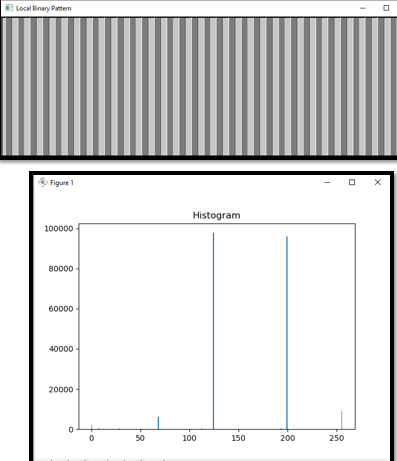

Vertical Line Pattern Image
